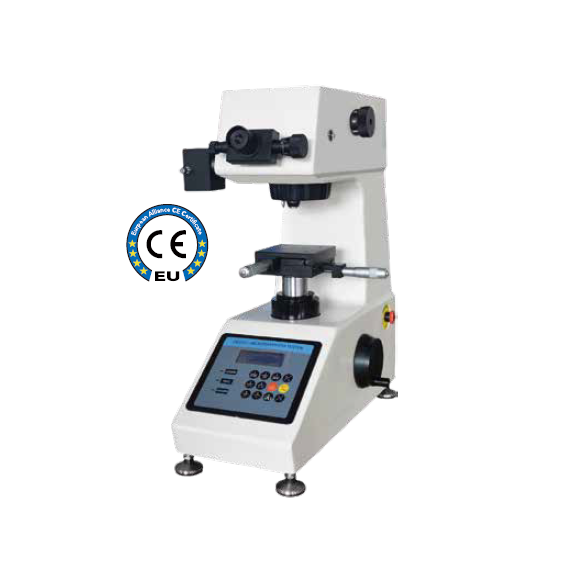

Micro Vickers hardness machine designed by MIT Taiwan

Suitable for all kinds of metal materials, electronic materials, coatings, and laminated metals

Taiwanese Design

LCD screen displays mode, force, indentation length, holding time, numbers and conversion ratio

Digital micrometer eyepiece, press the eyepiece button to automatically calculate and display the hardness value

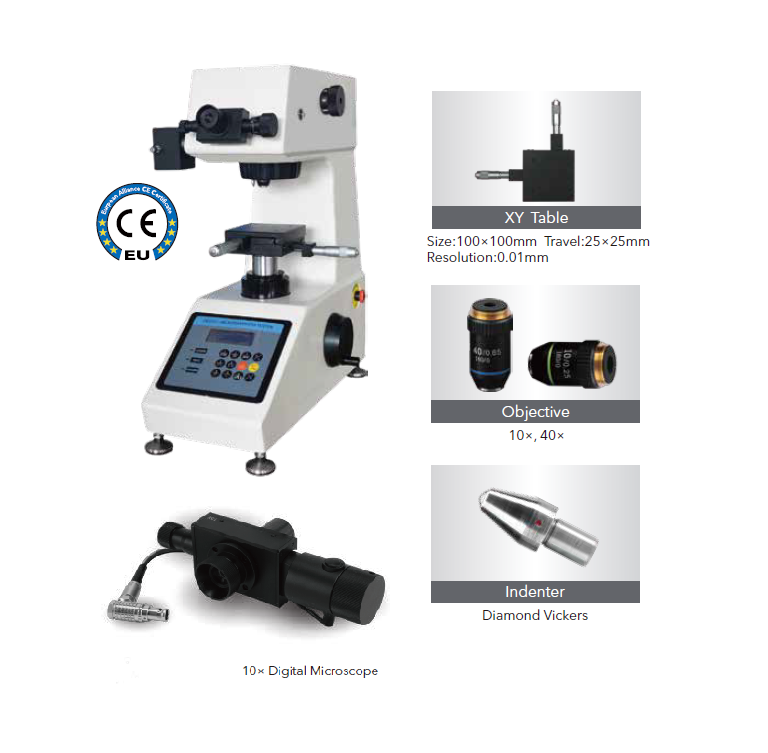

●Standard equipped with 10X and 40X objective lenses

●Standard stage area 100*100mm, stroke 25*25mm

●Optional external camera and hardness measurement software

●Hardness measurement specifications: ISO 6507, ASTM E384, JIS Z2244

Intelligent Digital Camera Measurement Software | Faster and More Accurate Hardness Analysis

This equipment, equipped with high-resolution digital camera measurement software, can automatically identify Vickers and Knoop hardness indentation contours, quickly complete indentation size measurement, and automatically calculate hardness values, significantly reducing human interpretation errors and improving measurement consistency and repeatability. Operators only need to capture the indentation image; the system can automatically complete indentation analysis, hardness calculation, data storage, and report output, greatly improving testing efficiency and making it particularly suitable for large-scale sample and quality control testing needs.

Software supportFixed-point hardness measurementandContinuous multi-point automatic measurementThe system allows users to set measurement points, test spacing, and test paths according to testing requirements, automatically completing a series of hardness tests and recording all measurement data. It can automatically generate data for samples such as heat-treated layers, carburized layers, nitrided layers, plating layers, welded areas, and surface-hardened materials.Hardness Profile and Hardness GradientIt clearly presents the hardness change trend of a material from the surface to the interior, helping users quickly analyze the depth of the hardened layer, material uniformity, and process quality.

Furthermore, measurement results can be displayed on the screen in real time, and support database management, Excel report output, image archiving, and measurement record traceability, facilitating the establishment of complete quality management data. Through intelligent image recognition and automatic analysis technology, not only is testing efficiency effectively improved, but also reliance on manual operation is reduced, making hardness testing more standardized, digitalized, and highly reliable. It is widely applicable to high-quality industrial applications such as metallographic analysis, heat treatment quality verification, metal material research and development, automotive components, aerospace, semiconductors, and precision machining.

An intuitive hardness measurement interface, coupled with clear diamond indentation images, automatically and accurately calculates hardness values, improving measurement efficiency and reliability.

This equipment is equipped with intelligent hardness measurement software, combined with a high-resolution imaging system, clearly presenting the outline of the diamond-shaped indentation after the test. It also uses automatic edge recognition technology to quickly measure the indentation size, calculating and displaying the hardness value in real time. This effectively reduces human interpretation errors and improves measurement consistency and repeatability. The software interface is intuitive and easy to use, supporting measurement data storage, image capture, and report output, significantly improving testing efficiency and meeting the needs of R&D, quality control, and production processes for high-precision hardness analysis.

Additionally, reports can be output with both text and graphics, recording hardness curves.

There are also digital touch screen operating models.
https://www.jys-ims.com.tw/products/thv1000/

Welcome to call usClick here to learn more

DHV1000 Miniature Vickers Hardness Tester | 10 Key Product Features

1. Designed in Taiwan (MIT), ensuring stable and reliable quality.

Designed and assembled in Taiwan using MIT (Made in Taiwan) technology, the equipment meets the needs of domestic industries, boasts stable performance and convenient maintenance, and provides comprehensive technical support and after-sales service.

2. Applicable to hardness analysis of multi-component materials

It can be widely used for the measurement of minute hardness in various metal materials, electronic materials, coatings, thin films, laminated metals, heat-treated workpieces and precision components.

3. Intelligent Image Automatic Measurement

Paired with a digital camera and professional hardness analysis software, it automatically identifies indentation size and quickly calculates hardness value, significantly reducing human interpretation errors and improving measurement efficiency.

4. Supports Vickers, Knoop, and carburized layer tests.

Built-in Micro Vickers, Knoop, and carburized layer hardness analysis functions can meet various material research and quality testing needs.

5. Hardness gradient analysis function

It supports fixed-point and continuous multi-point measurement, and can automatically draw hardness depth curves and gradient curves to quickly analyze the quality of heat-treated layers, carburized layers and surface hardened layers.

6. Automatic conversion between multiple hardness units

After measurement, it can automatically convert to multiple hardness units, facilitating comparison between different industry specifications and international standards, and improving the convenience of data application.

7. High-resolution image adjustment function

The software provides image adjustment functions such as brightness and contrast, which can clearly present the indentation outline, improving measurement accuracy and interpretation reliability.

8. Complete data management and report output

It supports the storage, opening, printing, and report output of images and measurement data, and can present the results in tables and curves for easy quality traceability and analysis.

9. Compatible with Windows operating systems

Supports operating systems such as Windows 7, Windows 10, and Windows 11. The user interface is intuitive and easy to learn, and can be quickly imported into the existing testing environment.

10. High cost-performance ratio with complete equipment

The standard package includes the main unit, a professional Windows computer, hardness analysis software, and a high-resolution digital camera, allowing for hardness measurement right out of the box. It is the best choice that combines performance and economy.

Load(gf)	10-1000 gf / 0.098-9.8 N
Test Range	1-2967HV
Sample height	0~90mm
objective lens	Standard: 10X, 40X
Stage	Movement amount XY axis 25×25㎜, minimum scale 0.01㎜
size	480W325D545Hmm
Loading mode	Automatic (load, hold, unload)
Accuracy standard meets	ISO 6507, ASTM E384, JIS Z2244
