Metallographic equipment

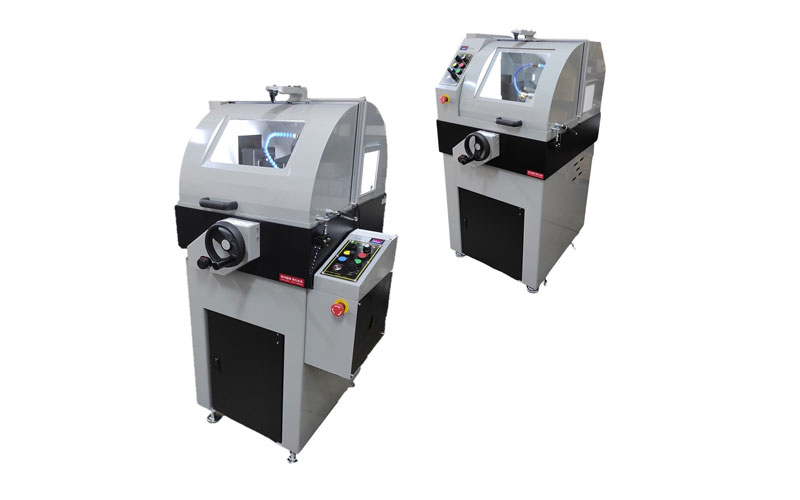

Desktop Metallographic Manual Cutting Machine

AT2500 desktop metallographic manual cutting machine, manual cutting, fast, convenient and safe, the best-selling product in 2020, economical and affordable, with super high CP value

Schneider electronic switch low voltage control, safe and reliable

The super cooling system ensures that the workpiece will not be burned when cutting

Easy to operate, sturdy and reliable, low noise

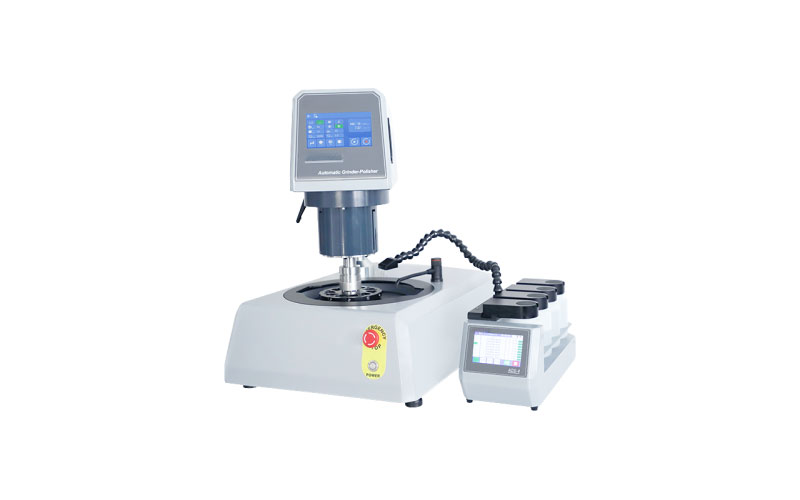

Fully automatic metallographic grinding and polishing machine

Evenly apply pressure to individual test pieces to achieve a smooth and flat surface, the touch screen is easy to understand, and multiple sets of memory modes record product grinding parameters

5.6-inch touch screen panel, the interface is simple and easy to understand

Two ways of central loading or single point loading can be realized

Configure 1-7 groups of peristaltic pump drip system

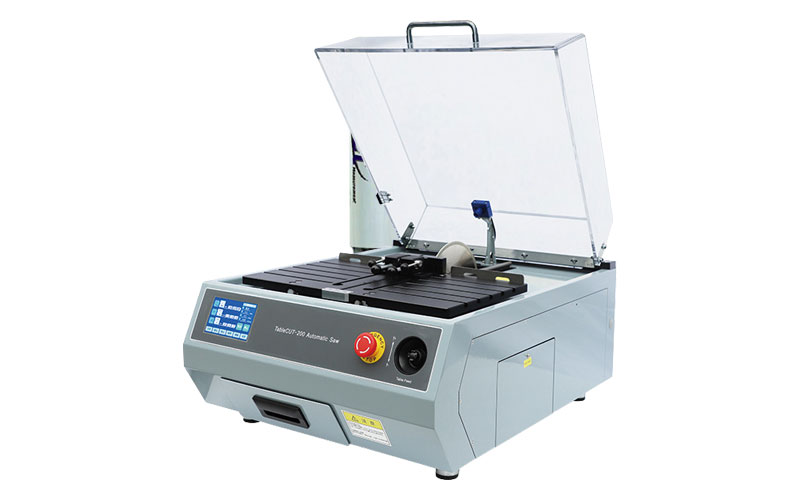

PCB board precision cutting machine

PCB printed circuit board finished product sampling and cutting machine, suitable for PCB slice production, LED slice section observation

Precision cutting, optional dry or wet cutting

T-slot clamping device for easy fixture installation

Transparent cover, easy to observe, easy to clamp, easy to operate

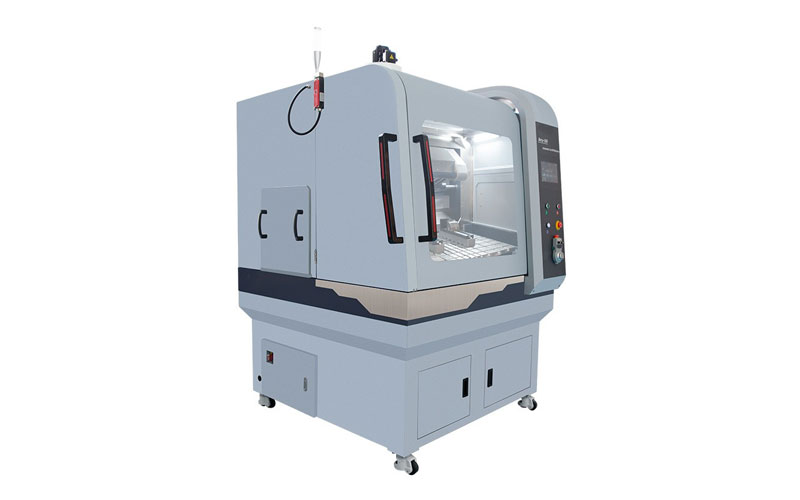

Metallographic precision cutting machine

100% is made in Taiwan with a novel appearance design, which is comparable to imported equipment. After years of market feedback and improvement, it is applied to various material processing industries

Laser tool setting beam, precise cutting, no damage to the fixture

Automatic knife advance and retreat system, automatic knife feed during cutting

Lift-up opening design, spacious and easy to operate

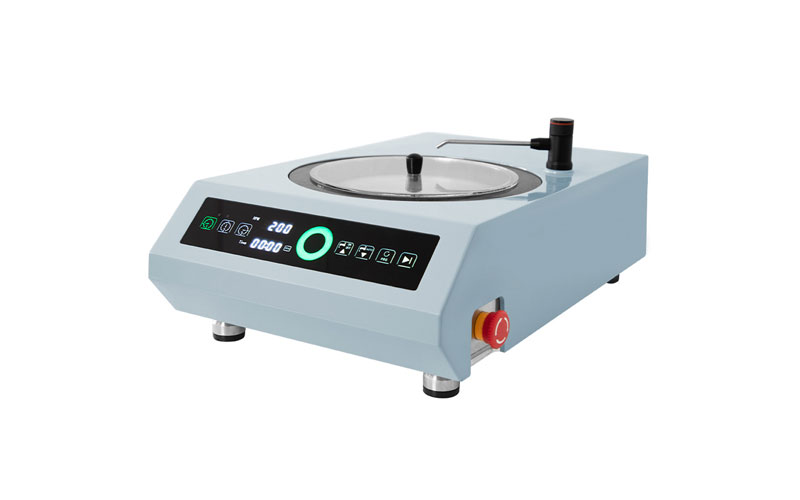

Metallographic grinding and polishing machine (automatic)

Fully automatic metallographic grinding and polishing machine, divided into two types, single disc and double disc, with waterproof operation panel and mirror surface, beautiful and generous

The world's first pressure application design, fast pressure application and precise positioning

Large drainage system, no waste water clogging

Wear-resistant and corrosion-resistant FRP body

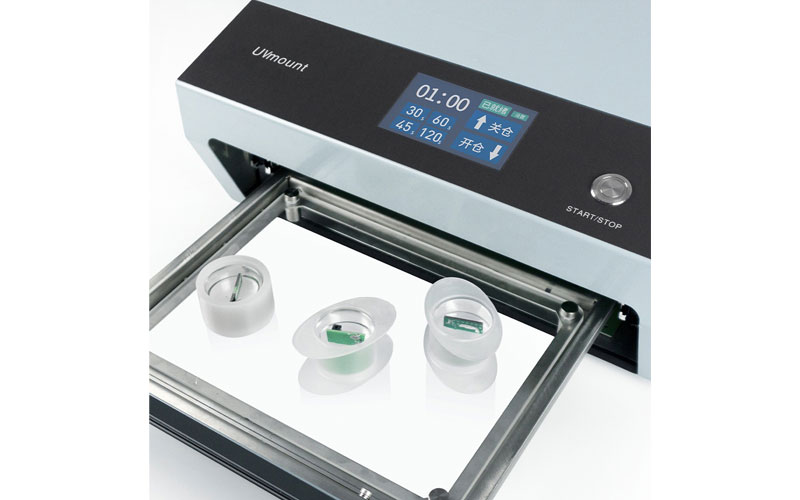

Hydraulic-Electric Embedding Machine

One-button press, automatic embedding, the production time can be completed in about 8 minutes, special and novel design, get rid of the traditional hydraulic oil leakage problem

The cooling temperature is adjustable, so that the embedding mold is not hot

External pump can achieve automatic cooling effect

One-button operation to achieve automatic heating and automatic pressurization

Purpose of metallographic experiment

Purpose of Metallographic Experiment​

1. Learn the complete steps of making a metallographic test piece, including sampling, embedding, grinding, polishing and corrosion.
2. Learn the functions and operations of metallographic microscopes, and understand the basic meaning of phase diagrams.
3. Combining the common sense of phase diagram and the observation of metallographic structure to understand the close relationship between alloy composition, thermal mechanical treatment, microstructure and material properties.

Principles of metallographic production

Metallographic production principle

After different alloy compositions and heat-mechanical treatment procedures, the material will produce different microstructures and obtain different properties. Therefore, the requirements for material-related properties can often be achieved by obtaining a specific microstructure through the design of appropriate alloy composition and thermal-mechanical treatment procedures.

Good preparation of metallographic specimens is the prerequisite for easy microstructure observation. The metallographic test piece is ground and polished to obtain a flat mirror surface. Usually, it must go through the etching process before it can be observed optically. The principle of corrosion is that the arrangement of atoms around the grain boundary is usually looser (compared to the inside of the grain), so its energy is relatively high, and the reaction to the corrosion solution is also more obvious. Therefore, after the polished test piece is properly etched, the crystal grains or metallographic phase can be seen clearly under the optical microscope.

Metallographic production process

Cutting and sampling

Sampling is the cutting of representative small test pieces from larger materials for processing. Therefore, when cutting the test piece, the cutting position and direction should be properly selected, and sufficient cooling must be paid attention to, so as to avoid local heating of the test piece due to cutting, which will cause tissue changes.

Embedded test piece

When the test piece is too thin and difficult to hold, or when you want to observe the edge structure of the test piece, the test piece needs to be embedded. Embedding can be divided into two types: hot embedding and cold embedding. Hot embedding uses a circle as the shape of the test piece, while cold embedding is formed according to the shape of different mold cups.

Metallographic grinding and polishing

The purpose of grinding is to remove the depth of surface damage or grain deformation during cutting. Generally, silicon carbide sandpaper or diamond grinding discs are used for grinding. Grinding methods can be divided into manual and mechanical. It is recommended to use a diamond grinding disc for fully automatic mechanical grinding.

Microscope observation and photography

When the appropriate microstructure is observed on the test piece, the high-resolution camera equipped on the metallographic microscope can be used to photograph the microstructure for permanent preservation and recording purposes, and it can also be imported for metallographic analysis for analysis.


Customer Reference

Sinosteel Malaysia, Qingda Technology, Yingming Industrial, Changjing Industrial, Jinchun Industrial, Chiayi Iron and Steel, TOEFL Industrial, Dacheng Stainless Steel, Taiwan Fastener Industry Technology Development Association, Feng Chia University, China Iron and Steel, Yaoshen Industrial, Metal Center . Aerospace, International Line, Qingxin Steel, Jianxin Technology, Huwei University of Science and Technology, Xintai Steel Industry, Mengying Technology, Chenwei Metal Industry, Tomita Electric, Standard Inspection Technology, Non-ferrous Industry, AirTAC.

Metallographic software

Cast iron metallography - vermicular nodularization rate

Take the metallographic image (500 times) with a microscope to calculate the percentage of carbide particles that meet the aspect ratio.

Real-time identification of wire spheroidization rate

One-click recording of digital spheroidization rate identification results

One-click output of digitized spheroidization rate report

Alloy Metallography - Grain Size Analysis

In the part of special alloy, it is aimed at the analysis of grain size and gray scale metallography in metallography.

Easy to use, no more cumbersome settings

Artificial Intelligence, Improving Identification Accuracy

One-click output of recognition result images and data

Residual wast iron analysis

The decarburization layer is defined as the distance from the initial position of decarburization to the surface layer, which can be divided into the depth analysis of fertilized iron decarburization layer, partial decarburization layer, and full decarburization layer.

Automatically measure the average particle size and perimeter of the metallographic structure

Capture images directly for grain analysis

Output BMP, JPG, Excel® report

Metallographic Analysis of Steel Carburizing and Quenching

For metallographic analysis, it is needle-shaped and spherical Matian loose iron (steel quenching) and tempered Matian loose iron analysis.

Real-time identification of steel quenching

One-key recording of steel quenching or induction heating and quenching identification results

One-click digital report output

Cast iron metallography - nodularity rate

The detection method of the nodularity rate of ductile iron is in accordance with the American standard ASTM A247, E2567-13.

Real-time identification of nodularity rate of nodular cast iron

One-click recording of digital spheroidization rate identification results

One-click output of digitized spheroidization rate report

Analysis of metal intervening objects (inclusions)

In the steelmaking industry, the metallographic analysis that is often used is the analysis of inclusions (inclusions).

Real-time recognition of the situation of the object

One-click recording of digital object identification results

One-click output of digital media reports

Relevant International Standards for Metallographic Analysis

Purpose of Metallographic Experiment​

The metallographic analysis software corresponding to each industry is based on the analysis codes of various countries

Our company also provides traceability of standard test pieces certified by TAF laboratory.

Analysis report export

Metallographic production principle

The analysis results can be exported as a report, and the metallographic analysis chart and company information can be exported to the report. In addition, our company can provide customers with free report customization services.

Have a Question?

Product FAQ

Here are answers to some frequently asked questions about metallographic equipment and metallographic software.

A: Avoid the high temperature generated during cutting to destroy the normal metallographic structure

A: Using the forward and reverse directions of the grinding machine and the grinding head, the fine lines produced during grinding can be eliminated

A: After polishing, the surface must be cleaned and dried, and then corroded to eliminate impurities outside the tissue

A: It needs to be cleaned and dried to avoid affecting the concentration of the corrosion solution, resulting in incomplete corrosion and failure to present metallographic phases

A: After a long time, it may cause the lens to loosen and cannot focus accurately, so that the metallographic observation cannot be clearly observed.

A: The operation SOP must be followed to avoid man-made damage to the lens due to random switching of the magnification of the lens
