Metallographic polishing cloth for final mirror polishing of various soft and hard materials
Fine polishing of copper, tin, resin, PCB, SMT, semiconductors
Fine polishing of composites, polymers, cast iron, ceramics, carbides, etc.
It is recommended to use 0.05-3.0um diamond polishing liquid, alumina polishing liquid or alumina polishing powder
The polishing cloth is composed of multiple layers such as a polishing layer, an abrasive storage layer, and a protective layer. Among them, the polishing fabric layer is the most important layer.
The pasting method can be directly pasted on the polishing disc or using a magnetic transfer disc.
◆ Polishing cloths of different colors can be used with different recommended materials to increase the effect
◆ Specifications are suitable for all grinding and polishing machines on the market.
◆ Available in three specifications: 8″, 10″ and 12″.

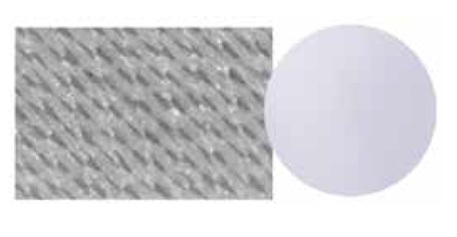

Wov-300 White woven synthetic yarn, adhesive backing, 10 pieces/pack
Densely woven synthetic yarn suitable for diamonds (1-9µm). It offers excellent edge retention and provides superior polishing and flatness.
Suitable for ferrous and non-ferrous metals, especially for coatings and samples composed of materials with different hardness, it can perform coarse and medium polishing.

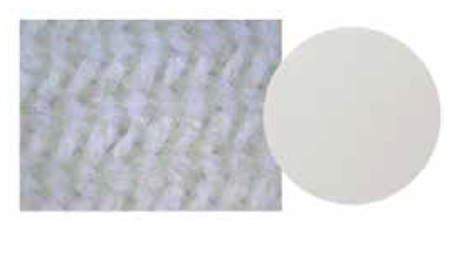

Wov-400 White wool fabric, adhesive backing, 10 pieces/pack
Medium-pile, low-resilience wool fabric, suitable for diamonds (1-6µm).
Suitable for medium to fine polishing of cast iron, powder metallurgy, thermally sprayed metals, and non-ferrous metals (such as copper, aluminum, and tin).

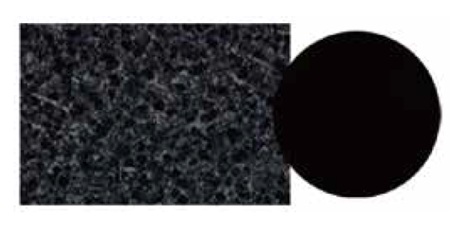

NWov-100 Black polyurethane, 10 pieces/pack
High-density, non-woven, low-lint porous polyurethane suitable for polishing alumina or silica suspensions (0.02-1µm).
Suitable for final grinding of titanium alloys, stainless steel, lead, zinc, printed circuit boards, electronic sealing products, non-ferrous metals, plastics, etc.

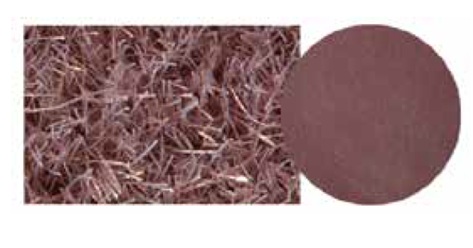

Nap-100 Brown fleece, adhesive backing, 10 pieces/pack
Highly durable, soft, low-lint synthetic fleece. Can be used with 0.05-3µm diamond or alumina suspensions.
Ideal for final polishing of ferrous metals, composites, and electronic components.
